AE-CPR2-H

2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel

LogoLogo

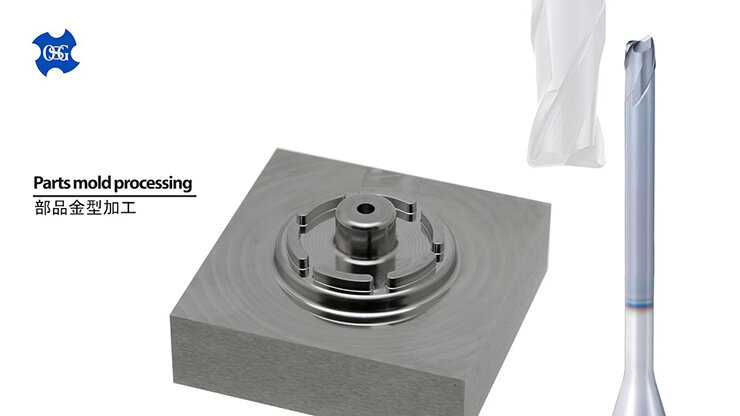

  • 2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel1
  • 2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel2
  • 2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel3
  • 2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel4
  • 2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel5
2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel1 2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel2 2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel3 2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel4 2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel5

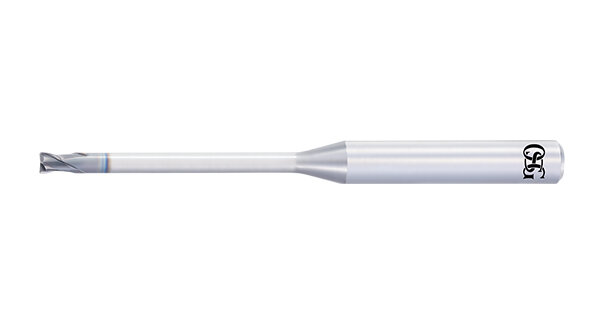

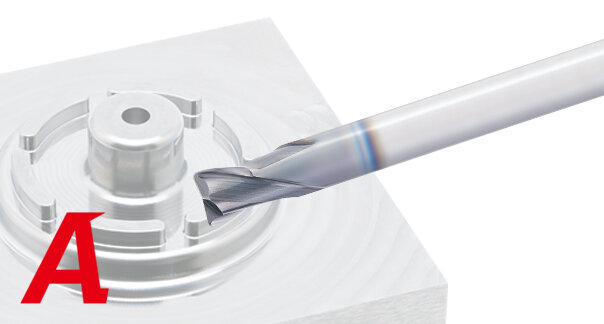

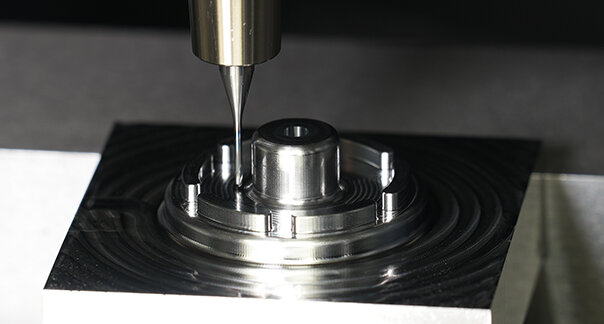

The AE-CPR2-H is a 2-flute long-neck radius carbide end mill optimized for high precision finishing of high-hardness materials. Since the number of cutting edges cutting simultaneously is small, tool deflection is suppressed with low resistance, enabling high-quality processing. The corner radius is designed with a 3-dimensional negative geometry that combines both sharpness and cutting edge rigidity. Furthermore, with the addition of OSG’s “DUROREY” coating optimized for high-hardness steel, high chipping resistance is achieved even in workpieces of over 60 HRC, enabling long tool life and high-precision machining.

2-flute high-precision finishing carbide ball end mill for high hardness steel AE-BD-H

2-flute high-precision finishing carbide ball end mill for high hardness steel (AE-BD-H).

Click here for details.

Features

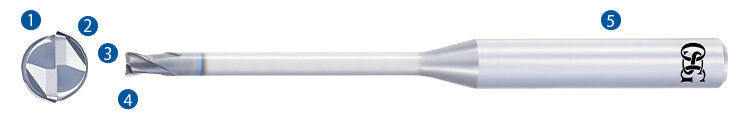

2-flute high-precision finishing long neck carbide radius end mill for high-hardness steel Features
  • DUROREY coating enables superior heat resistance and high toughness optimized for high-hardness steel milling!

1 Low resistance by 2-flute specification

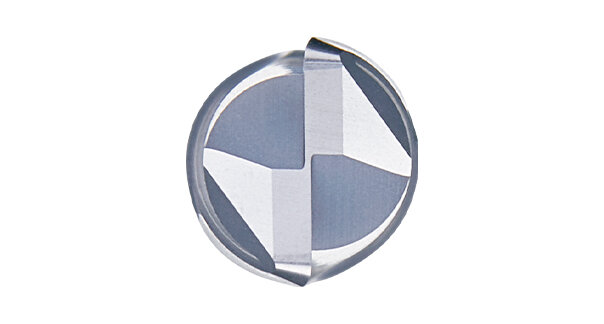

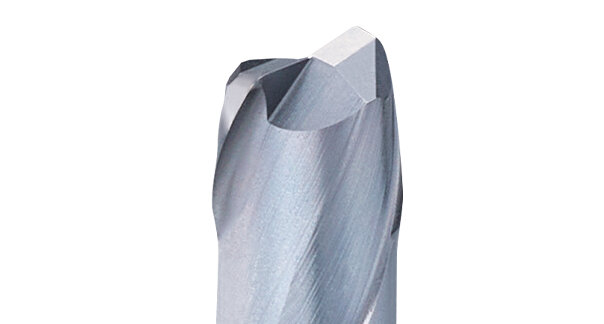

2 Achieves both sharpness and cutting edge rigidity by three-dimensional negative geometry

3 Higher precision machined surface quality by flat cutting edge specification ※Excluding some sizes

4 Superior ball corner R precision

5 Superior shank accuracy. Supports h4 tolerance (0/-0.004)

Applications

Carbon Steel・Alloy Steel・Tool Steel・Prehardened Steel・Hardened Steel・Stainless Steel

Lineup

Long neck radius type (AE-CPR2-H)

  • φ0.2×R0.02～φ3×R0.5

Others

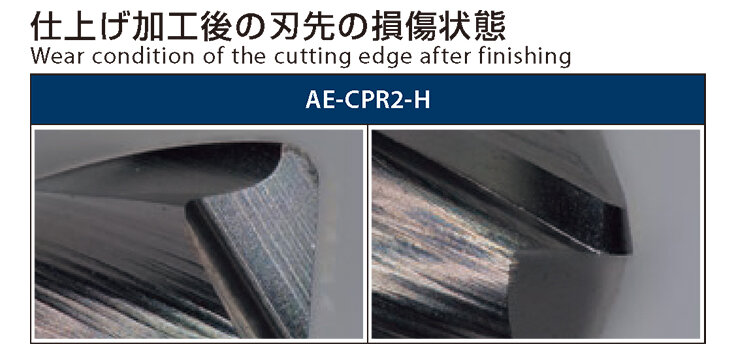

Data

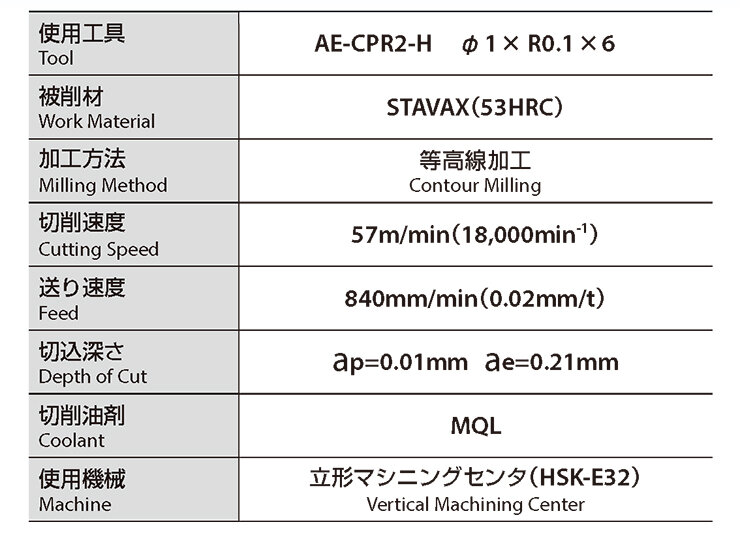

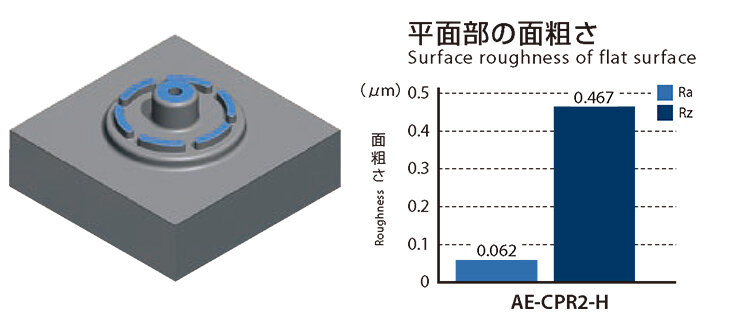

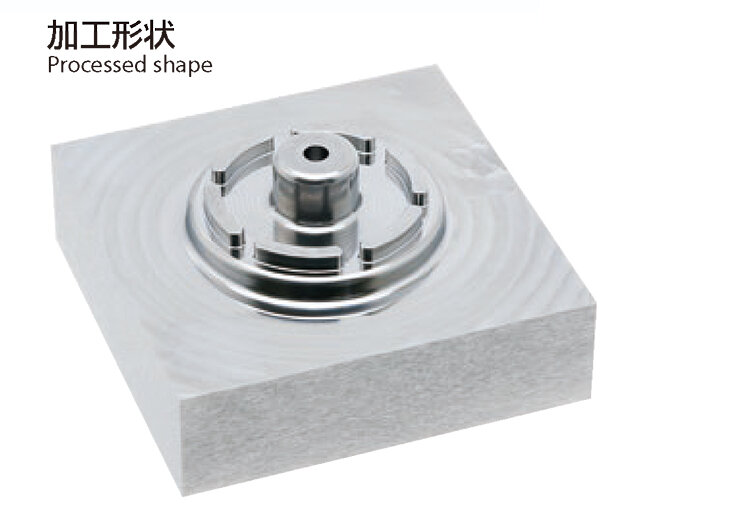

High-quality finishing

High-quality finishing
High-quality finishing
High-quality finishing
High-quality finishing

Other Cutting Data
