PLDS
Centering and Chamfering Cutter

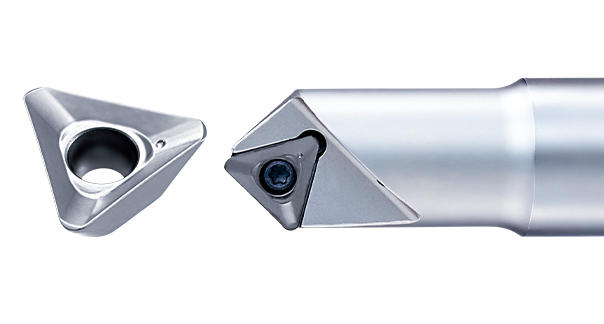

The PLDS indexable cutter can be used for centering, chamfering and V slotting with a single tool. Its economical 3-corner triangle insert combines chipping resistance and sharpness. Two high-strength insert grades can be selected according to the work material – for steel and cast iron or for stainless steel and heat resistant alloys.

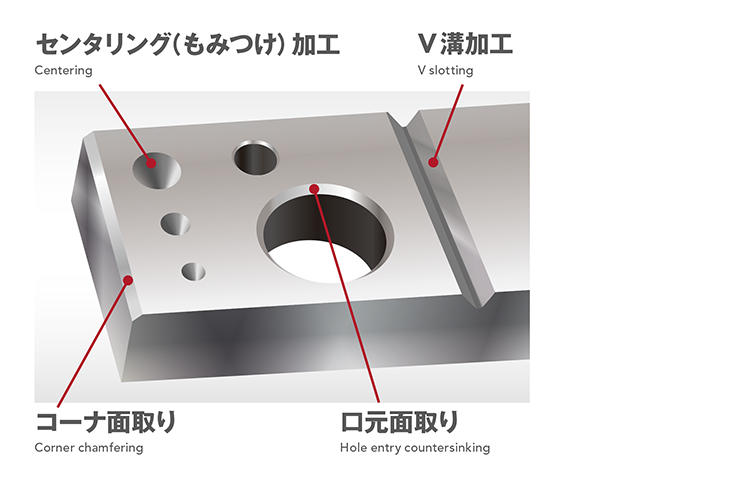

Centering, countersinking and V slotting can be performed with a single tool

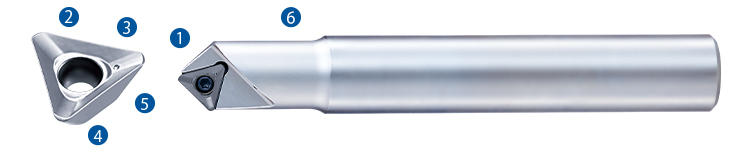

Features

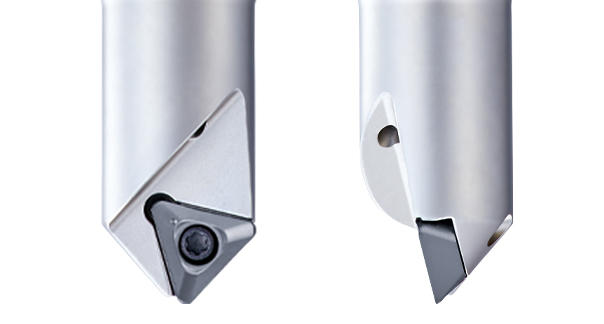

Two types of bodies are available -SIG: 90° and 120°
Economical 3-corner insert design maximizes cost efficiency
High-strength insert grades that can be selected according to the work material
Highly rigid negative chamfer tip that enables difficult centering operations
Large rake angle and low resistance
Internal coolant contributes to stable machining
Applications
Mild Steel・Carbon Steel・Low Carbon Steel・Alloy Steel・Die Steel・Stainless Steel・Cast Iron・Ductile Cast Iron・Aluminum Alloy・Heat Resistant Alloys・Titanium Alloy・Pre-hardened Steel（40~43HRC）・Steel for Die Casting（43~48HRC）
Lineup
Straight Shank Type
- 90° φ14.4~φ17.3
- 120° φ14.4~φ17.3
Screw Fit Type
- 90° φ14.4
- 120° φ17.3
Others
-
The product lineup also includes the PMEN for front and back chamfering, the PDZ for stable flat-bottom hole machining, and the PZAG counterboring cutter with perfect chip control.
Data

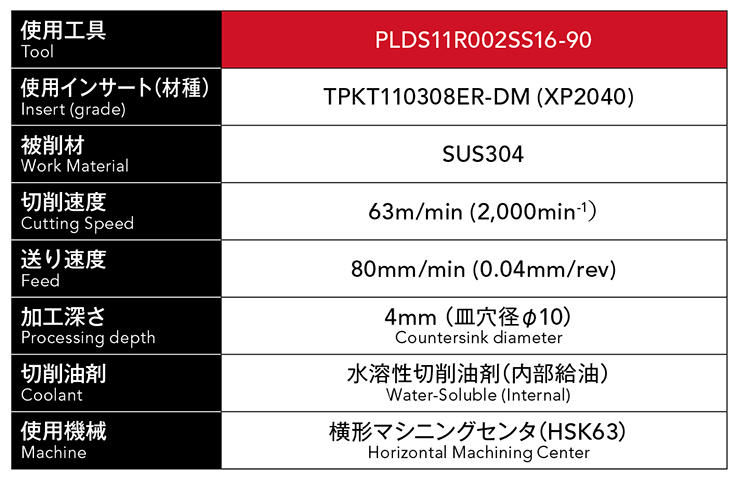

90° centering

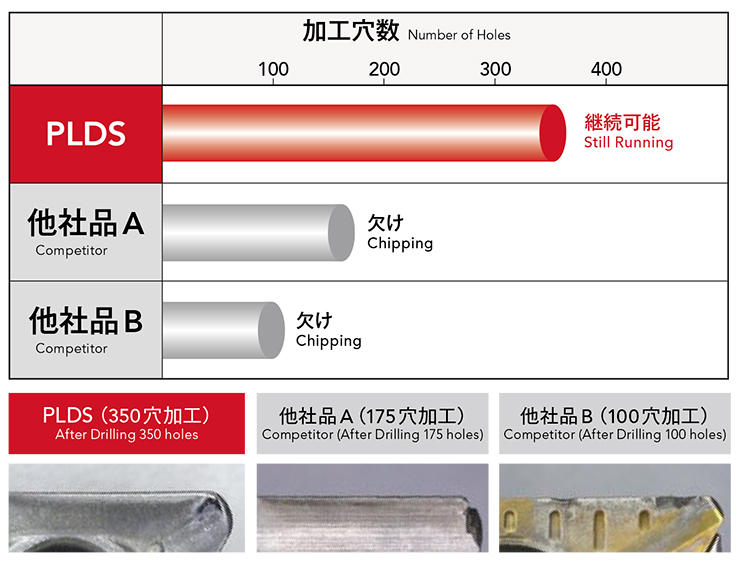

The PLDS exhibits good wear condition and can continue to be used even after machining more than twice the number of holes as the competitor products.
