PMEN
Chamfering Cutter
The PMEN indexable chamfering cutter is a chamfering cutter that can perform both front and back chamfering. Chamfering of 30°, 45°, and 60° is possible with a common insert and two types of bodies. The body shape allows the user to visually check the set chamfer angle to prevent machining errors.

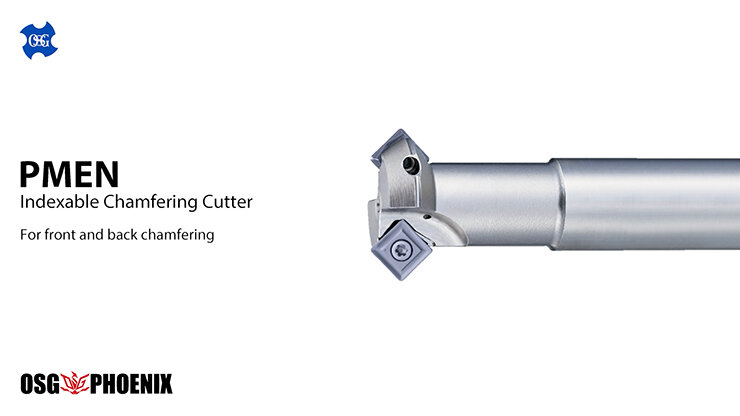

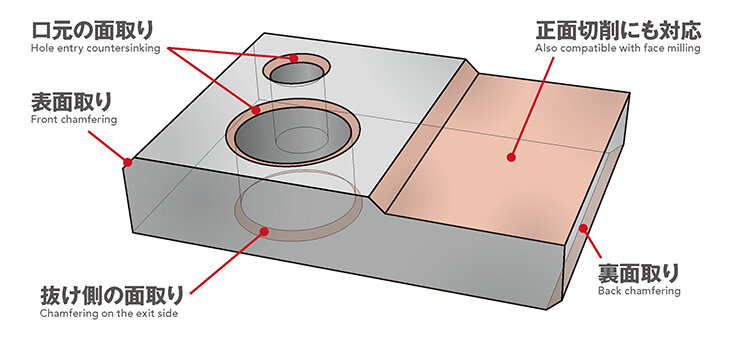

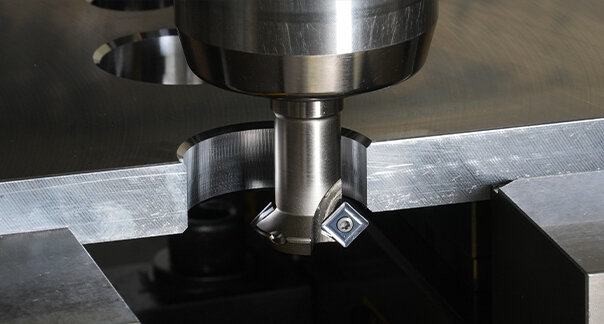

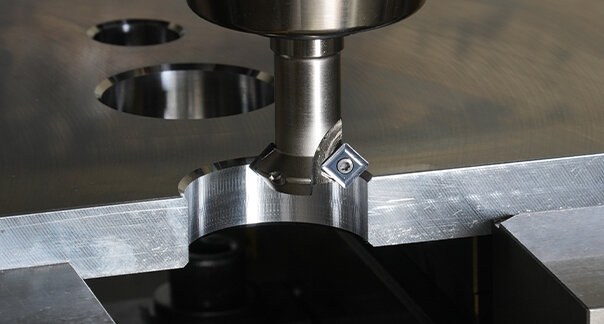

Chamfering cutter capable of front and back chamfering

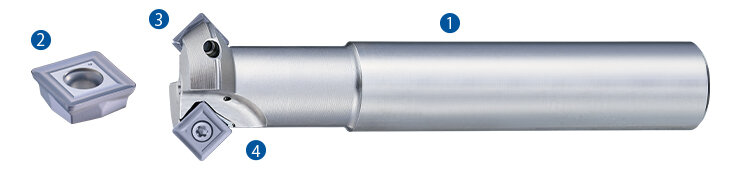

Features
2 types of body

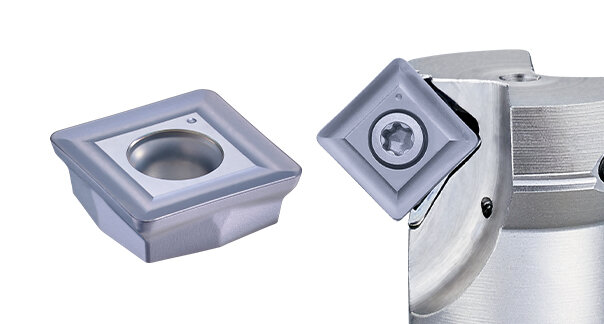

Insert that allows two types of chamfer angles

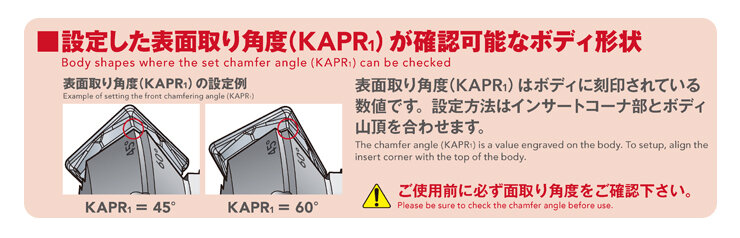

Body shape that allows the user to confirm the set chamfer angle at a glance
Internal coolant for stable machining
Applications
Mild Steel・Carbon Steel・Low Carbon Steel・Alloy Steel・Die Steel・Stainless Steel・Cast Iron・Ductile Cast Iron・Aluminum Alloy・Heat Resistant Alloys・Titanium Alloy・Pre-hardened Steel（40~43HRC）・Steel for Die Casting（43~48HRC）

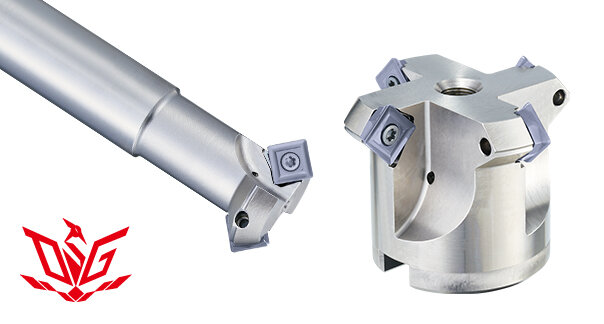

Lineup

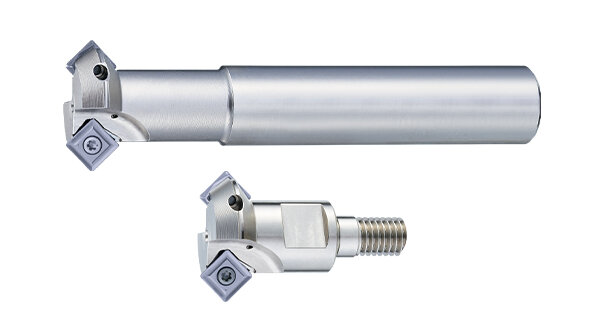

Straight Shank Type, Screw Fit Type
- Chamfer angle 45°, 30° φ8.5～φ32.5
- Chamfer angle 45°, 60° φ8.5～φ32.5
Bore Type
- Chamfer angle 45°, 30° φ40.5～φ60.5
- Chamfer angle 45°, 60° φ40.5～φ60.5
Others
-
The product lineup also includes the PDZ for stable flat-bottom hole machining, the PZAG counterboring cutter with perfect chip control, and the PLDS, which can perform chamfering, centering, and V slotting.
