ADO-40D・50D

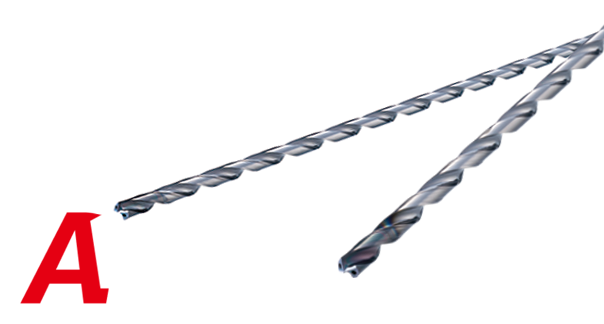

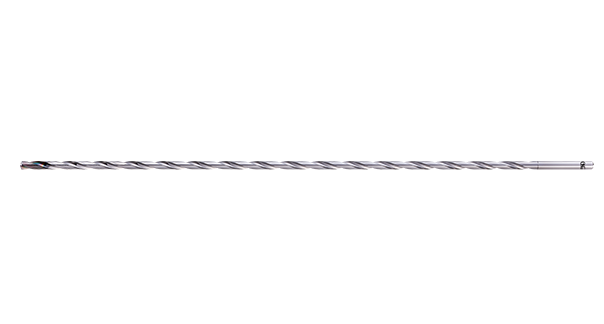

Carbide Long Drills with Oil Holes
Ultra-efficiency deep-hole 50xD drilling is made possible with the R gash geometry that breaks chips into compact pieces with excellent evacuation capability, as well as a unique flute specification and helix angle to ensure tool rigidity and hole accuracy. A total of 38 items have been added to the ADO-40D and 50D lineup to accommodate a wide range of machining needs.
The ADO coolant-through carbide drill series is also available in 3xD up to 30xD.

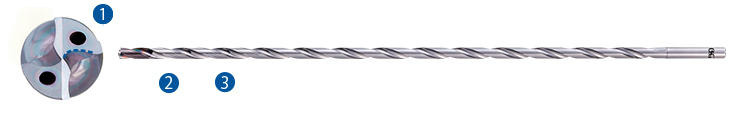

Features

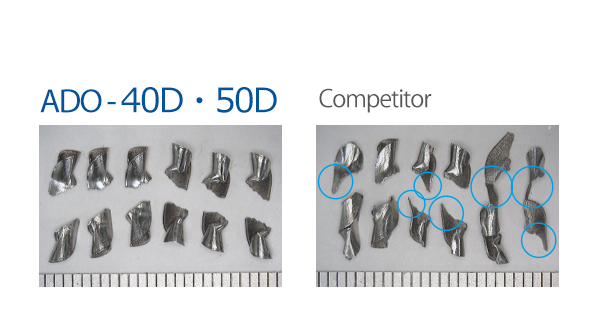

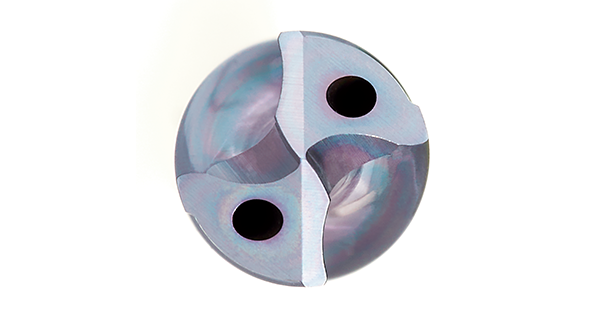

Unique R gash geometry enables super low cutting resistance and exceptional chip control
New flute specification with smooth chip evacuation and high tool rigidity qualities ideal for ultra-deep-hole applications
Highly rigid 25° helical flute
Applications
Low Carbon Steel・Mild Steel・Medium Carbon Steel・High Carbon Steel・Alloy Steel・Hardened Steel・Stainless Steel・Cast Iron・Ductile Cast Iron
Lineup
ADO-40D φ3～φ10
ADO-50D φ3～φ8.5
Others
-
The ADO coolant-through carbide drill series is also available in 3xD up to 30xD.
Data
Media
Operational Guideline
