AE-VTS-N

DLC Coated Carbide End Mill for Non-Ferrous Materials - High Performance Type

LogoLogo
  • DLC Coated Carbide End Mill for Non-Ferrous Materials - High Performance Type1
  • DLC Coated Carbide End Mill for Non-Ferrous Materials - High Performance Type2
  • DLC Coated Carbide End Mill for Non-Ferrous Materials - High Performance Type3
  • DLC Coated Carbide End Mill for Non-Ferrous Materials - High Performance Type4
DLC Coated Carbide End Mill for Non-Ferrous Materials - High Performance Type1 DLC Coated Carbide End Mill for Non-Ferrous Materials - High Performance Type2 DLC Coated Carbide End Mill for Non-Ferrous Materials - High Performance Type3 DLC Coated Carbide End Mill for Non-Ferrous Materials - High Performance Type4

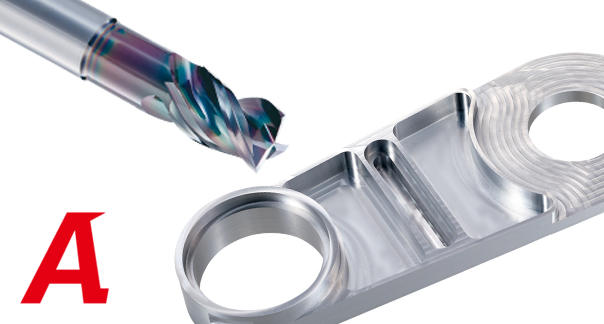

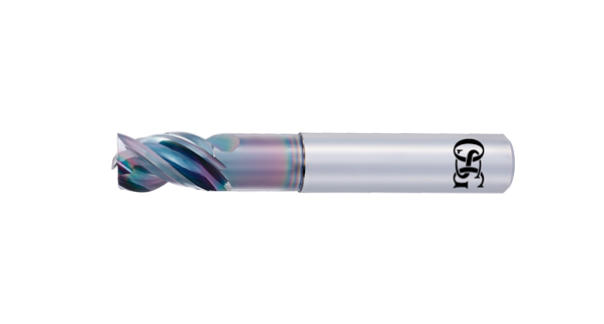

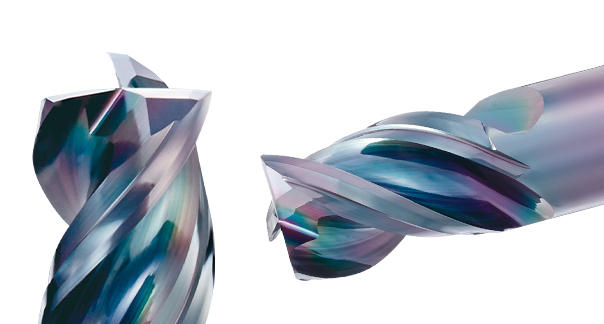

The AE-VTS-N high performance DLC coated carbide end mill for non-ferrous materials is suitable for a wide variety of applications with high efficiency and quality. Its DLC-IGUSS coating further improves tool life with excellent welding resistance and lubricity, which is effective in the machining of non-ferrous materials such as aluminum alloys. In addition to square and radius styles, sharp corner edge type has been newly added to the lineup to enable effective corner milling with no uncut residue, which can be used in a wide range of applications. In addition to square and radius styles, sharp corner edge type has been newly added to the lineup to enable effective corner milling with no uncut residue, which can be used in a wide range of applications. In addition, dia. 1 mm to 2.5 mm have been added to the lineup of the square type and sharp corner edge type to support precision machining of small diameter sizes.

DLC Coated Carbide End Mill for Non-Ferrous Materials Standard Type AE-TS-N・AE-TL-N

Standard type (AE-TS-N・AE-TL-N) DLC coated carbide end mill for non-ferrous materials is also available.

Click here for details.

Features

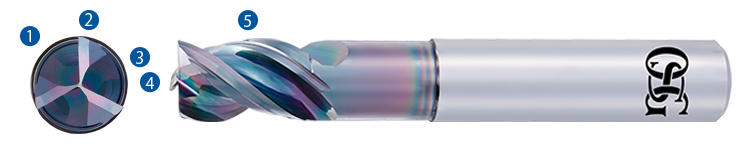

DLC Coated Carbide End Mill for Non-Ferrous Materials - High Performance Type Features
1 DLC-IGUSS coating

2 Flat cutting edge specification achieves higher precision machined surface quality

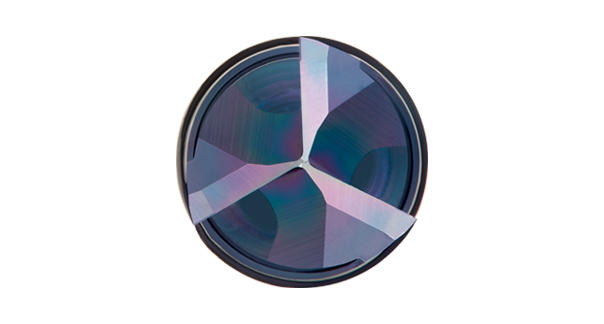

3 The three cutting edges are connected at the center to equalize cutting load, which enables greater stability at high speed milling

4 Center cutting edge specification to enable plunging

5 Variable-lead geometry suppresses vibration

  • Variable-lead geometry suppresses vibration

    • Applications

    Copper Alloy・Aluminum Alloy・Plastic・Thermoplastic Resin・Thermosetting Resin

    Lineup

    Short Type (AE-VTS-N) 1.5 x D flute length (Neck length 3 x D)

    • Square Type　φ1×3～φ12×36
    • Radius Type　φ3×9×R0.2～φ12×36×R3
    • Sharp Corner Edge Type　φ1×3～φ12×36

    Others

    Data

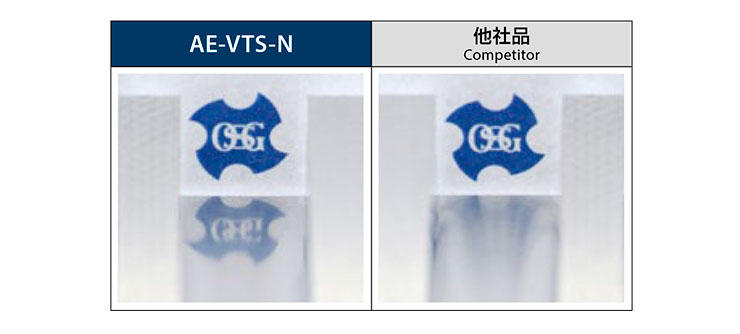

    Good machined surface quality even under high speed cutting condition

    Good machined surface quality even under high speed cutting condition
    Good machined surface quality even under high speed cutting condition
    Good machined surface quality even under high speed cutting condition

    Other Cutting Data
